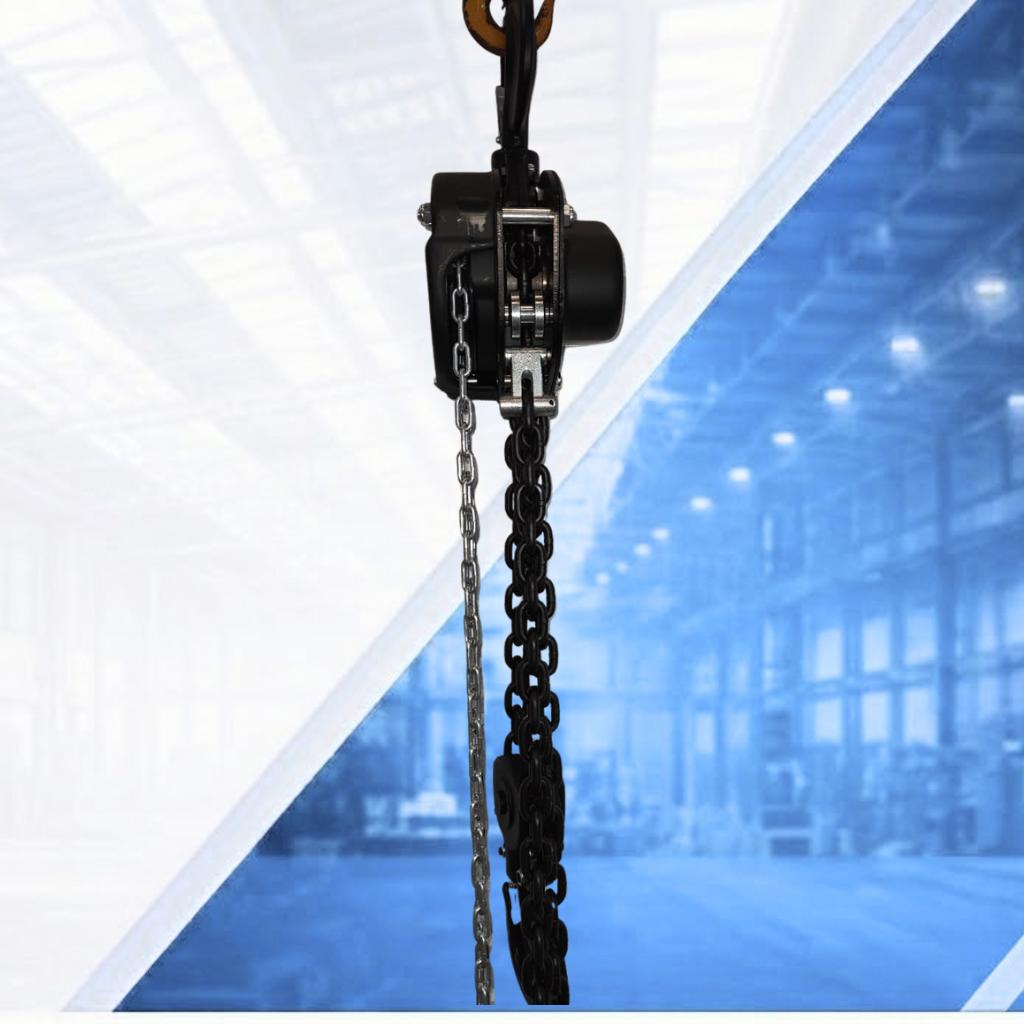

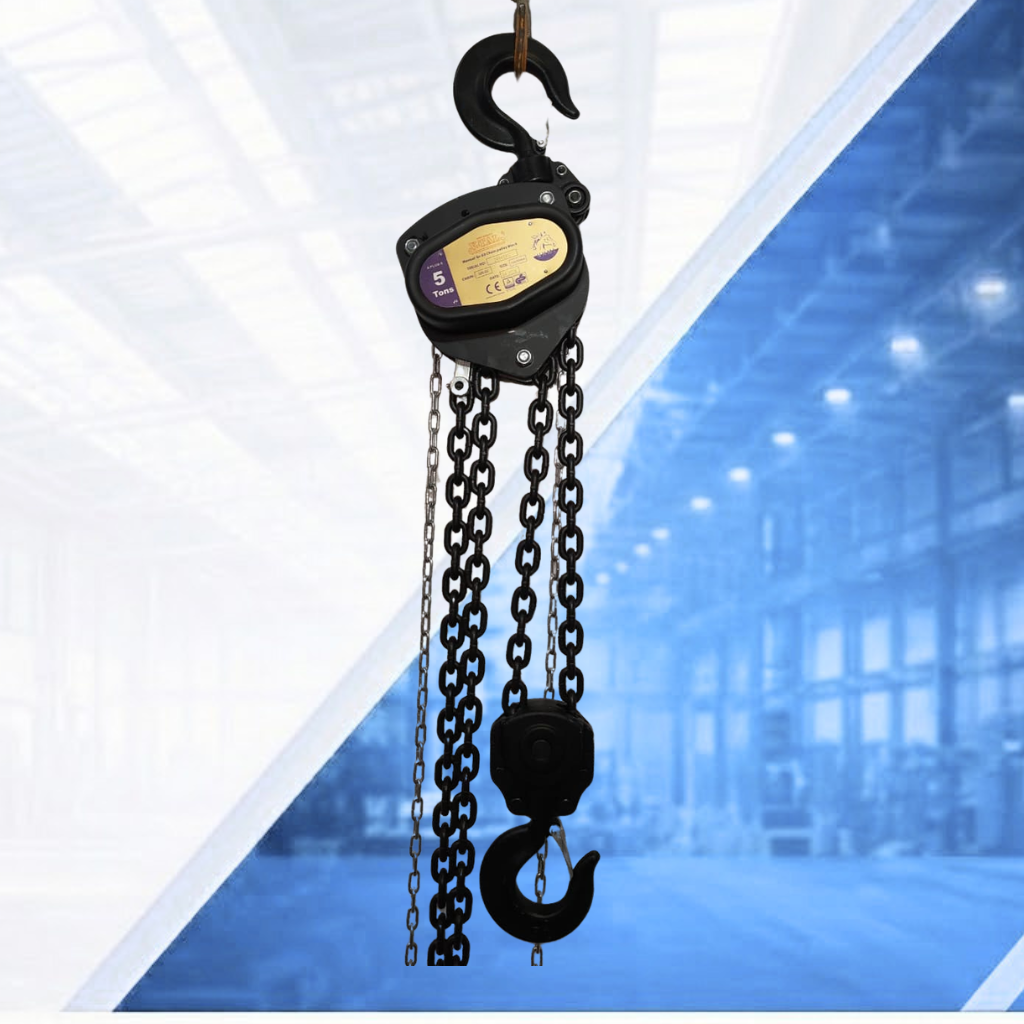

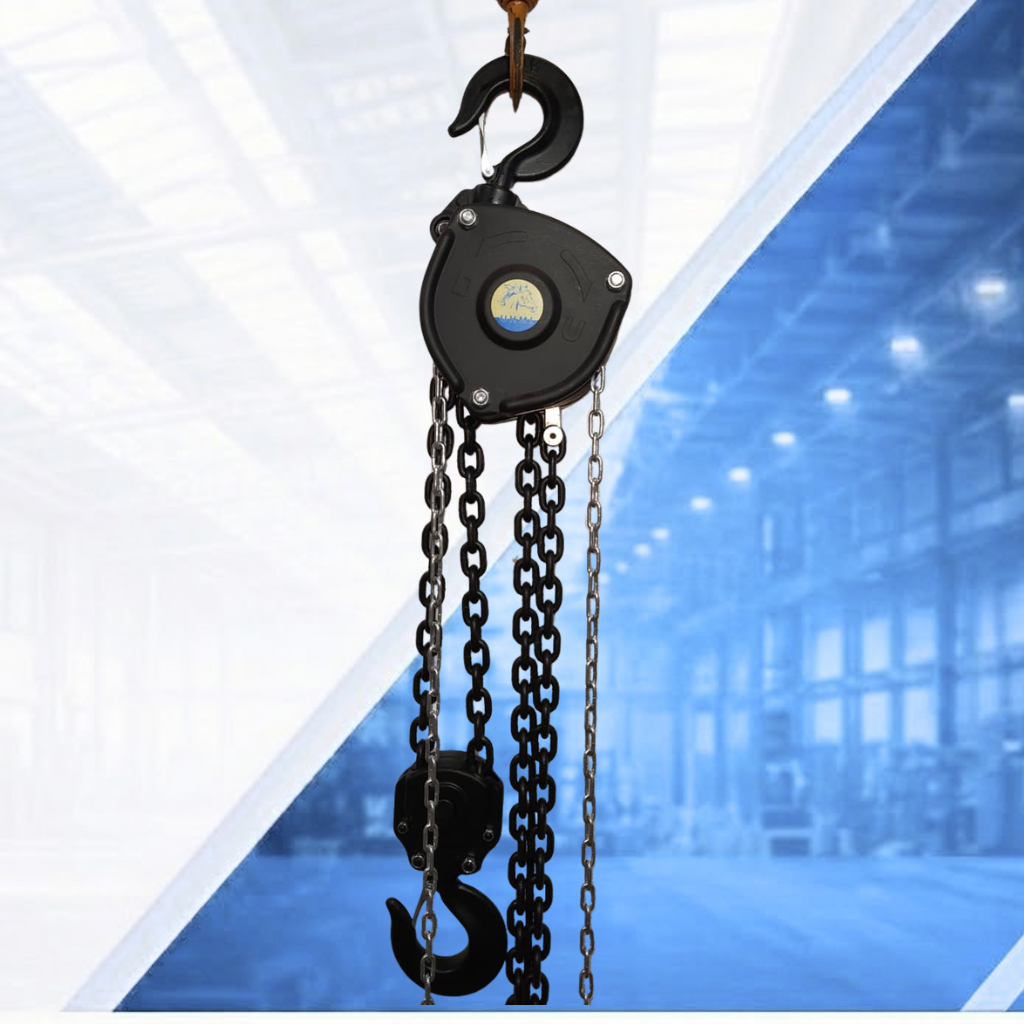

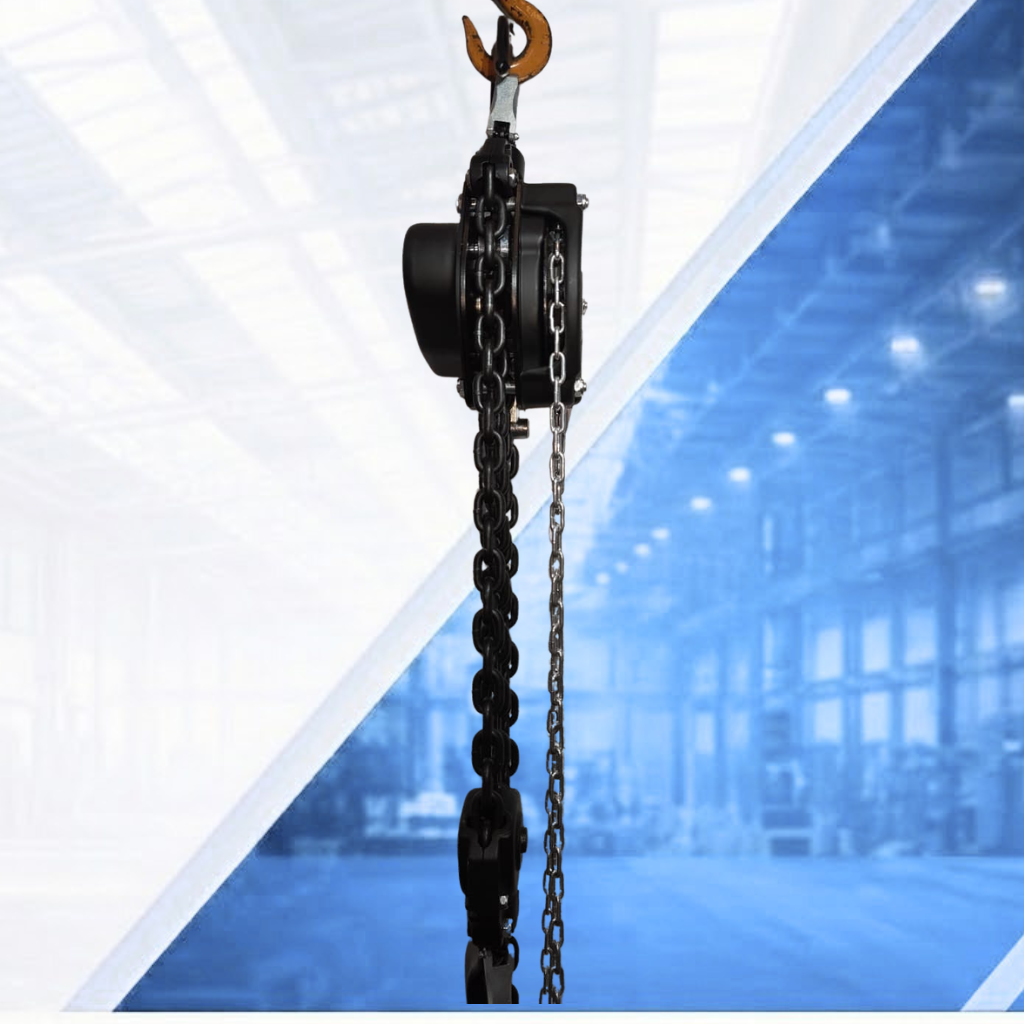

Gallery
Standard Features:
- A high-strength steel frame is supported by a two-point structure, and the driving shaft is attached by a cantilever.
- The performance of maintenance-free bearings approaches that of rolling bearings, offering improved corrosion resistance.
- The replacement parts, comprising the friction disc and ratchet, offer added convenience, and the larger diameter of the friction disc enhances brake reliability.
- The hook material is made of alloy steel and has undergone heat treatment, with a safety latch that is stamped, and the hook frame is forged for higher quality and reliability.
- The cover features a curved edge for easy hand chain replacement and smooth operation.
- The support rod effectively secures the ratchet cover, providing protection to the brake system, while the smooth steel bushing on both sides of the black oxide plate ensures smooth operation, along with the black oxide roller guide and stamping stripper.
- The Load Chain is made of alloy Steel G80 in accordance with EN 818-7 (German Standard).
- The brake seat is connected to the driving shaft with a screw thread, and the driving shaft has undergone precise heat treatment to ensure high precision dimensions.
Optional Features:
- Overload Protection system.
- Roller bearing on load Sprocket.
- Load chain is alloy steel grade 80 accord with EN818-7 standard.
- According to ATEX Directive.
| ITEM CODE | 01-050 | 01-051 | 01-052 | 01-053 | 01-054 | 01-055 | 01-056 | |
|---|---|---|---|---|---|---|---|---|
| MODEL | Table data | Z010-A619 | ZO20-A619 | ZO30-A619 | ZO50-A619 | Z100-A619 | Z200-A619 | Z300-A619 |
| CAPACITY | Tons | 1 | 2 | 3 | 5 | 10 | 20 | 30 |
| LOAD CHAIN | mm | 6x18 | 8x24 | 8x34 | 10x30 | 10x30 | 10x30 | 10x30 |
| HAND CHAIN | mm | 5x25 | ||||||
| STRANDS OF LOAD CHAIN | 1 | 1 | 2 | 2 | 4 | 8 | 12 | |
| STRANDS LIFT | m | 2.5 | 3 | 3 | 3 | 3 | 3 | |
| Moving distance of load wheel with 1 meter lifting | m | 41.5 | 72.6 | 111.2 | 163.4 | 326.8 | 368.2x2 | 490.2x2 |
| Effort Required to lift Rated load | N | 320 | 365 | 365 | 435 | 435 | 435X2 | 435X2 |
| Running Test Load | KN | 12.25 | 24.5 | 36.75 | 61.25 | 122.5 | 245 | 367.5 |
| DIMENSIONS(MM) | A | 146.5 | 170 | 146.5 | 190.4 | 190 | 209 | 312 |
| B | 162 | 194 | 220 | 288 | 384 | 625 | 691 | |
| Hmin | 340 | 414 | 512 | 635 | 743 | 890 | 1360 | |
| E | 26 | 42.5 | 50 | 59 | 64 | 65 | 110 | |
| K | 35.5 | 32 | 37 | 46 | 50 | 81 | 81 | |
| EXTRA WEIGHTPER METER OF EXTRA LOAD | kg | 1.6 | 2.2 | 3.6 | 5.2 | 9.5 | 19 | 27.7 |
| NET WEIGHT | kg | 10.8 | 18 | 24.3 | 38.7 | 78 | 163.6 | 220 |
