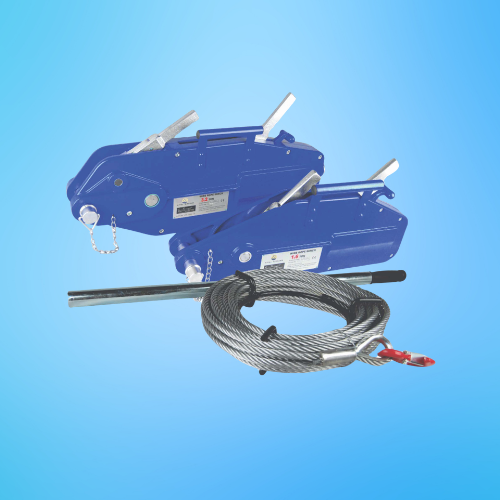

Pulling Lifting Machine
Product Details:
Portable manual control for lifting, pulling, positioning and tensioning loads—on site, in the workshop or at sea.
- Smooth operation with precise load control
- Telescoping handle for adjustable pull and stroke
- Replaceable shear pin for overload protection
- Low-maintenance design for everyday industrial work
UQ Model: Technical Drawing and Specifications
Pulling Lifting Machine – Multi-Purpose Industrial Lifting by V-TAL
V-TAL’s pulling lifting machine from Uqab Hoisting & Marine Industry is a manual and portable lifting and pulling device designed for controlled horizontal and vertical load handling. Built with precision-engineered internal mechanisms and a durable metal housing, this machine offers reliable performance for construction, marine operations, maintenance sites, and outdoor fieldwork.
What Is a Pulling Lifting Machine?
A pulling lifting machine is a manually operated mechanical device that uses a wire rope and gripping mechanism to lift, pull, position or tension loads. It is useful where portable operation and controlled mechanical advantage are required without relying on an electric power source.
How Does a Pulling Lifting Machine Work?
The machine grips a load-bearing wire rope and advances it through lever operation. The lever mechanism provides mechanical advantage, allowing the operator to control the movement of a load during lifting, pulling, positioning or tensioning operations.
Pulling Lifting Machine: Lifting Capacity vs Pulling Capacity
Lifting capacity and pulling capacity are not necessarily the same rating. Lifting capacity refers to the manufacturer’s specified capacity for lifting, while pulling capacity refers to the specified capacity for pulling operations. Always select the rating applicable to the intended operation instead of assuming that one rating applies to both.
Applications of Pulling Lifting Machines
| Application | Typical use |
|---|---|
| Construction | Pulling and positioning structural or mechanical components |
| Machinery maintenance | Shifting and positioning machinery |
| Fabrication | Pulling and aligning fabricated components |
| Marine work | Maintenance and controlled load positioning |
| Infrastructure | Pulling and positioning equipment |
| Industrial maintenance | Controlled manual movement of loads |
How to Choose the Right Pulling Lifting Machine
| Selection factor | What to check |
|---|---|
| Lifting capacity | Maximum load that must be lifted |
| Pulling capacity | Maximum required pulling force |
| Wire-rope specification | Diameter and length must match the machine requirements |
| Operating effort | Manual force required for the intended operation |
| Rope travel | Required movement and working range |
| Working environment | Indoor, outdoor, marine, dusty or other site conditions |
| Attachments | Check hooks, shackles, anchoring and connection requirements |
Pulling Lifting Machine Supplier in Mumbai
V-TAL supplies pulling lifting machines for industrial and material-handling applications in Mumbai and across India. Our Mumbai location is at Marathon Futurex, NM Joshi Marg, Lower Parel, Mumbai 400013, Maharashtra. Customers can contact V-TAL to confirm the required lifting capacity, pulling capacity, wire-rope specification, configuration and current availability before ordering.
QUICK ANSWERS
Pulling Lifting Machine FAQs
Choose a question to see the answer.
What is a pulling lifting machine?
A pulling lifting machine is a manually operated mechanical device that uses a wire rope and gripping mechanism to lift, pull, position or tension loads.
How does a pulling lifting machine work?
The machine grips a load-bearing wire rope and advances it through lever operation, providing mechanical advantage for controlled lifting or pulling.
What is the difference between lifting capacity and pulling capacity?
Lifting capacity is the manufacturer’s rated capacity for lifting, while pulling capacity is the specified capacity for pulling operations. These ratings can differ by model.
Where are pulling lifting machines used?
They are used for construction, machinery maintenance, fabrication, marine work, infrastructure projects and other applications requiring portable manual pulling, lifting or positioning.
How do I choose the right pulling lifting machine?
Consider the required lifting and pulling capacities, wire-rope diameter and length, operating effort, rope travel, working environment and attachment requirements.
What standard applies to hand-operated pulling and lifting machines in India?
BIS identifies IS 5604 for hand-operated universal gearless pulling and lifting machines. The current 2025 edition covers requirements and testing within its specified scope. This does not by itself establish BIS certification for a particular V-TAL model; certification should only be stated where supporting documentation is available.
The V-TAL lifting and pulling machine uses mechanical leverage to allow operators to pull, lift, position, or tension loads with high accuracy. Its compact structure and ergonomic design ensure easy mobility and safe usage, even in challenging site conditions. Whether it is for shifting machinery, tightening cables, or pulling heavy objects, the machine ensures smooth and controlled operation.
Used widely in fabrication units, shipyards, and infrastructure projects, this pulling lifting machine is engineered for long-term durability and operational safety. Uqab’s commitment to quality ensures every lifting and pulling machine undergoes stringent performance tests, ensuring reliability under heavy loads and continuous-handling tasks.
Standard Features:
• The enclosed design protects the internal parts from contamination.
• The short handlever is fitted with an ergonomic rubber grip.
• All parts of the disc type load brake are manufactured from high quality materials and are corrosion protected.
• Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.
• Alloyed steel link chain with zinc-plated resp. yellow chromated finish, in accordance with national and international standards and regulations.
• Drop forged suspension and load hooks are made from non-aging, high tensile steel and fitted with robust safety latches.
Pulling Lifting Machine :-specifications
•Three pulling machine models of up to 3.2 tonnes. •Used to lift and pull multiple loads.
•Overload protection.
•Body made from pressed, galvanised steel.
•No aluminium components.
•Special double-safety device.
•Cable safety rating 6.
•Compact and light.
•Individual quality control.
